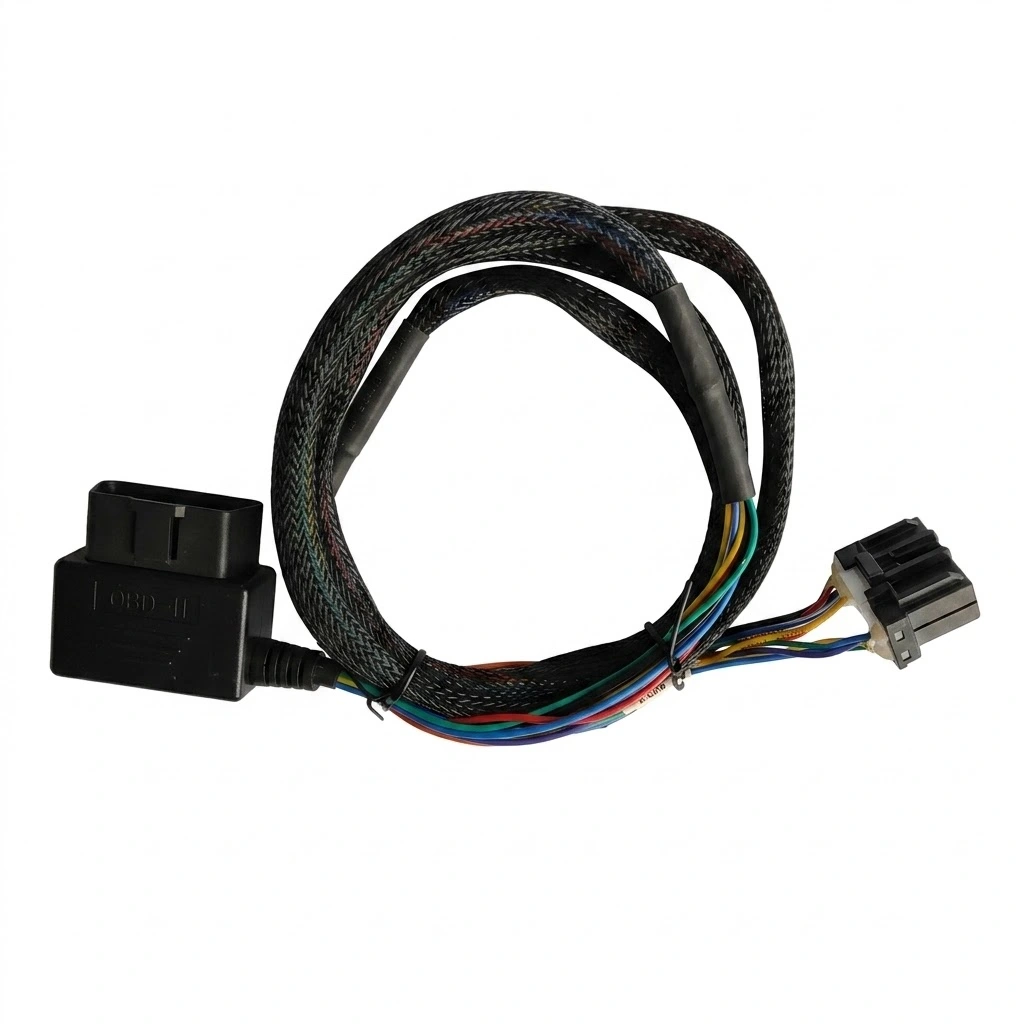

Premium 16-Pin OBDII 90° Right-Angle Wire Harness for Automotive Diagnostics & Tracking

Product Overview

Our OBDII 90° Right-Angle Wire Harness is the ultimate solution for modern vehicle telematics and diagnostic installations. Designed with a slim-profile 90-degree connector, this harness allows for seamless connection in tight dashboard spaces where a standard straight plug would interfere with the driver’s legs or vehicle panels. Built to IATF 16949 standards, it features full 16-pin pass-through connectivity, ensuring compatibility with all standard OBD2 protocols (CAN, ISO, KWP). Whether used for GPS tracking, fleet management (ELD), or performance tuning, this harness provides a secure, vibration-proof link that maintains the vehicle’s aesthetic and ergonomic integrity.

Product Specifications

Specification Item	Technical Details
Connector Type	OBDII 16-Pin (Male to Female / Open End)
Angle Orientation	90-Degree Right Angle (Low Profile)
Pin Configuration	Full 16-Pins Connected (Optional custom wiring)
Wire Gauge	24 AWG to 28 AWG Tinned Copper
Cable Jacket	Flexible PVC or Automotive-Grade TPU
Voltage Rating	12V / 24V DC (Universal Vehicle Support)
Operating Temp	-20°C to +80°C
Compliance	IATF 16949, RoHS, REACH

Key Features

Low-Profile 90-Degree Design

The 90-degree right-angle connector significantly reduces the vertical clearance required, allowing the OBD port to be used even when located behind kick panels or in narrow footwells. This prevents accidental damage to the port and ensures a clean, “hidden” installation for telematics devices.

Full 16-Pin Pass-Through

Unlike cheaper versions that only connect power pins, our harness features a full 16-pin connection. This ensures complete support for all OBD2 communication protocols, including high-speed CAN bus data, K-Line, and power/ground, making it compatible with every OBDII-compliant vehicle.

Automotive-Grade Durability

Constructed with high-flexibility tinned copper conductors and a rugged outer jacket, this harness is built to withstand the extreme temperatures and vibrations found in automotive environments. The injection-molded connectors offer superior strain relief, preventing wire fatigue over thousands of miles.

Seamless “Stealth” Integration

Perfect for fleet owners and enthusiasts who want to install GPS trackers or ELD devices without having wires hanging under the dash. The low-profile design and flexible cabling allow for easy routing through interior trim panels for a factory-installed look.

Industrial Applications

Fleet Management & ELD

The preferred choice for installing Electronic Logging Devices (ELD) and fleet tracking hardware in commercial trucks and passenger vehicles, ensuring compliance without compromising driver comfort.

Vehicle Diagnostics & Tuning

Ideal for connecting permanent diagnostic gauges, head-up displays (HUD), or performance tuners that require a constant connection to the vehicle’s ECU while driving.

Smart Mobility & Car-Sharing

Used in car-sharing and insurance telematics (UBI) to hide hardware and prevent unauthorized removal or tampering with the diagnostic port connection.

Technical & Surface Performance

Each OBD harness undergoes a 100% pin-to-pin continuity test to guarantee perfect data transmission. The connector housings are made from impact-resistant ABS/PC blends, and the internal terminals are gold-plated or high-quality nickel-plated copper to prevent oxidation and maintain a stable electrical connection across years of use.

Bespoke & OEM Manufacturing

We offer comprehensive customization for bulk automotive orders:

• Custom Cable Lengths: From short 10cm pigtails to 5-meter extension leads.

• Y-Splitter Configurations: Connect two OBD devices to a single port simultaneously.

• Open-End/Pigtail Options: Tailored for direct hardwiring into vehicle control systems or custom electronic modules.

FAQ

Why should I use a 90-degree OBDII harness instead of a straight one?

The 90-degree right-angle design is essential for space-constrained dashboards. It reduces the vertical clearance required, preventing the connector from interfering with the driver’s legs and allowing for a “stealthy” installation of GPS trackers or ELD devices behind vehicle panels.

Is this OBD2 harness compatible with both 12V and 24V vehicles?

Yes, our OBDII harnesses are engineered for universal automotive compatibility. They support standard 12V passenger vehicles as well as 24V heavy-duty trucks and commercial fleets, ensuring stable data transmission across different voltage systems.

Does this extension cable support full 16-pin data pass-through?

Absolutely. This harness features full 16-pin connectivity, meaning it supports all OBD2 protocols including CAN Bus, K-Line, L-Line, and PWM. It ensures that all diagnostic data and power signals are transmitted without any loss or interference.

Can the OBDII 90° harness withstand high-vibration automotive environments?

Yes. Manufactured to IATF 16949 standards, the harness uses automotive-grade PVC/TPU materials and precision-molded strain reliefs. This construction ensures high resistance to constant vibrations, mechanical shocks, and temperature fluctuations common in vehicles.

Is this harness suitable for permanent ELD or GPS tracker installations?

Yes, it is the preferred choice for fleet management. The low-profile 90-degree head allows telematics hardware to remain connected permanently while keeping the vehicle interior tidy and preventing accidental disconnection of the tracking device.

Do you offer custom lengths or Y-splitter versions for this OBDII cable?

We provide comprehensive OEM/ODM services. We can customize the cable length, add shielding, or create Y-splitter configurations (1 male to 2 female) to meet your specific fleet management or diagnostic equipment requirements.
